Most common Boards in stock:
Each single board of this section euro 400.00 until Feb 15th !!!

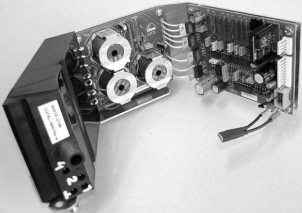

B35 00-451100-01 II power supply board; No longer available!
B45 00-451015-01 peripher. interface adapter
B64 00-451019-04 KV-control & display; No longer available!
B100 00-451023-11 mains control & KB interface
B101 00-451026-06 radiation time-control & iris control
B104 00-451031-07 interface to imaging system
B105 00-451035-01 C-arm lift motor control
B111 00-451038-01 power line control
B111MR 00-451039-01 monitor rotation power sup
B112 00-451104-07 exposure time-control & DAP counter
B116 00-451040-03 power supply for B104
B143 00451043-02 filament supply & adjusting
B199 00-451127-01 handswitch & footswitch monitoring
B206-8 00-451074-03 insulation board 8 channels
Image processor boards: contact me for pricing.
CPU100 00-904035-01 - V 3.16 (for IPS200)
NWA500A 00-904032-01 (100/120 Hz)
BSA500A 00-904286-01 No longer available!
BSA500C 00-904287-01 (2 MB CMOS static RAM memory)
Here you can find most any board location of both compact & series.
CCD camera:
CCD camera 00-453050-04 equipped with one Rodenstock lens made in Germany (3801-345-00-75) No longer available!
Video graphic printer:
UP-895CE Sony graphic printer 00-904888-01
What everybody ought to know about buying a used OEC or Ziehm C-arm:
GE OEC’s C-arms (and Ziehm) are the most popular brand of C-arms on the market today. According to GE, 7 out of 10 surgeons have used second hand or refurbished OEC C-arms.
We get more requests for refurbished or used OEC C-arms than any other brand of C-arm.
The OEC 7700, 7900 along with the Ziehm Solo and Ziehm 7000 are the most requested models in Africa. Then you find the OEC 9600, 9800 and 9900 in many East-European countries.
Rotating Anodes versus fixed Anodes:
The anode is a small metal disc that receives the electron beam from the cathode and emits X-rays. The anode is positioned at an angle that will direct the X-ray beam into the arc of the C, where the subject of your scan will be positioned. Energy coming to the anode from the cathode produces a huge amount of heat. If that heat keeps hitting the same spot over and over again, as in a stationary anode tube, the surface of the anode may deform and the angle of the X-ray beam might shift, reducing dose efficiency and the overall image quality the tube is capable of producing.
In the case of a rotating anode tube, the heat of the incoming cathode beam is dispersed evenly across the entire surface of the anode as it rotates. This enables rotating anode users to perform longer scans and at higher doses. Rotating anode systems can shoot longer and at a higher dose. (For larger patients or longer shoots, for example)
On the other hand, if you intend to perform mainly short, lower-dose studies, as in pain management needle placement or hand and foot specialties, a stationary anode tube can suffice. Stationary tubes are also frequently found as more compact, space-saving and less expensive types of machines.
Contact me today and save up to 70% off on OEM cost!
Franck Guttentag best.engineer@engineer.com
GE/OEC 7900 Fluorostar support section:
New: OEC 7900 Fluorostar software upgrades and full training course for sale here!
Notice: The resident / main software of the machine is NOT available here.
Common Fluorostar Service CD art/n 00-441200-03 --> Euro 137.00 outright. Only 99.00 NOW!
7900 Fluorostar Service Manual, 247 pages; art/n 00-441165-02 --> Euro 163.00 outright. Only 140.00 NOW! Comes up on a CD or one SD card.
NEW: GE-OEC Fluorostar advanced 7900 CD; contains the service manual with additional information and tips; art/n 00-441168-01.This particular manual for sale euro 221.00 outright. Only 199.00 NOW!
Best Offer: Now you can get the very complete Enhanced 7900 Fluorostar Service CD art/n 00-441203-02! Everything you need ON THE SAME CD, a full package of tools, including: Software updates and the useful Kappa AFS software and janus updates as well, Installation, Service Manuals, Schematic Package, Periodic Maintenance, illustrated Parts Manual, Advanced Service, Operator manuals in most any languages and FMIs. Euro 326.00 outright. Only 299.00.00 NOW!
New: Get the full Fluorostar TRAINING COURSE with everything you need to become a well trained Engineer on that equipment! contact us for more details.
Payment through Paypal welcome. CD Shipping Europe and world wide offered replaced with direct download through the internet straight away upon reception of your payment! Now you don't need to be waiting for the delivery of your parcel any longer!
Here you can order your manuals and training courses: Contact us.

Here you can download free the xray generator calibration manual:
Maxiplus 3000 generator (x-ray tank)
p/n 00-453815-XX fits software rev 2.05 or 2.08
p/n 00-454037-01 fits software rev 3.00
p/n 00-453825-03 service (comes up with no collimator)
Ziehm support section:
In this Ziehm dedicated section of our information page you'll mostly find some technical tools like manuals, documents and stuff like that. Terms and conditions apply in this section. Manuals / compils are sold at different prices. (Exposcop and resident softwares not available)
Available manuals below for sale euro 95 outright each: (but the compilation)
- Ziehm 7000 Service Manual
- Ziehm 7000 compact Service Manual
- Ziehm 7000 Vista Service Manual
- Ziehm 7000 Plus Service Manual
One enhanced version / compilation of these 6 manuals below Euro 294.00 outright.
- Ziehm 8000 Operating Manual
- Ziehm 8000 Service Manual
- Ziehm 8000 compact Service Manual
- Ziehm 8000 Vista Service Manual
- Ziehm 8000 Vista Plus Service Manual
- Ziehm 8000 Vista Endo Service Manual
Here below euro 95.00 outright each:
- Ziehm Compact litho Service Manual
- Ziehm Center Beam Alignment procedure
- Ziehm Exposcop Service Manual
Payment through Paypal welcome. CD Shipping Europe and world wide offered OR direct download through the internet upon reception of your payment!
Terms and conditions apply. Contact us.
NEW offer on power transistors, relays, pots, integrated circuits, etc:
Contact: F. Guttentag, Owner best.engineer@engineer.com
|
Holder types for Maxiplus x-ray generator
p/n 00-453053-01 and 00-419150-01 fit OEC 7700; (left)
p/n 00-452129-01 fits OEC 7600. (right)
Holders of diffrent types that can fit the maxiplus generator
Collimator Slot for Maxiplus x-ray generator
Collimator slot p/n 00-452041-01 with the useful centering adjustment tool.
Also available collimator iris p/n 00-453049-01 that goes with the collimator slot.
Specific Boards for Maxiplus generator:
B40 high voltage drive and filament drive -available soon.
B42 00-451013-01 -no longer available
B43 00-451014-01 filament regulation
B45 00-451015-01 peripher. interface adapter
B54 00-451016-01 KV regulation
B101 00-451026-06 radiation time-control & iris control
ASM filter board 00-453052-01
FREE DOWNLOAD TOOL BOX BELOW:
Here you can find most any board location of both 7700 compact & series.
Here you can find the board locations of head gen
Here you will find the replacement of monoblock generator
Here you'll find the B345 digital aperture control drawings
Here you find the B345 board drawing
Here you have the xray-tube to control electronics drawings
And here you get the fluoro mode control drawings
and as well the film mode control drawings
Have a look to the KV switch control & display logic
Here is the KV generation tank generator
And as well the KV generation HV power
Here is the mA switch control & display
and as well the mA B143 filament control
and one more mA generation monoblock generator
TOOL BOX UNDER TERMS & CONDITIONS BELOW:
Manuals of the section below available on sale only.
Payment through Paypal welcome. CD Shipping Europe and world wide offered. Replaced by direct downloading from our server. Please notice when you get in touch with us, you must provide your detailed infomation in your email: full name, address, zip code, country, etc. No response will be given to anonymous requests.Thank you for your understanding.
7700 compact operator's manual for sale euro 158.00 terms and conditions apply
7700 compact/series mA generation troubleshooting charts (terms and conditions apply, contact us)
Below: 7700 service manual and spare parts catalogue as well:
Here, Request the compact / series 7700 service manual Get the full 7700 service manual rev 050418 euro 242.00 outright, terms and conditions apply
Searching for spare parts, looking for the right p/n? Request the full 7700 spare part catalogue (CD version) from here on: 7700 spare parts catalogue Get the full 7700 SP list euro 294.00 outright, terms and conditions apply.
7700 units equipped with image preview features:
Here you find the collimator service setup software and manual for preview with B345. Get the full software and manual for tank calibration euro 294.00 outright, terms and conditions apply
New: Many other service / operator's manuals on different brands will come up soon!
Here below, asking price: 42.00 euros each. Terms & conditions apply.
- Aloka SSD-5500 Ultrasound Service manual; comes up in pdf
- Aloka SSD-1700 Ultrasound Service manual; pdf
- Aloka SSD-900 Operator's manual, French version, pdf
other parts here: (OEC 7700)
Keyboard for 7700 p/n 00-412105-03 (both compact & series)
Bussmann Fuse 56 Amps, 56ET, BS88:4 for x-ray cabinet
Handle for C-arc p/n 00-414011-01 (7700 compact & series)
Lamp with wires p/n 00-453138-01 (7600-7700)
Tank bumper p/n 00-419087-01 (7700 compact & series)
Power PNP silicium Transistor SJ5437 Motorola TO63
Power NPN silicium Transistor SJ5439 Motorola TO66 fast switching
Relay G4ODC5, 60Vdc-3 Amps, Opto 22
Relay 240 V~ - 4 Amps, Opto 22
Rectifier bridges, several values, most common 20 Amps - 600 Volts.
Real Time Clock, DS1244, Dallas
Potentiometers, several values
Etc.
Clearance sale on Kontron Instruments:
50% off on power supply unit for console sigma Iris 880.
Kontron S880 power supply complete for console Sigma Iris Available in stock.
Miscellaneous:
Market trends up for used medical equipment and service!
When you get in touch with us:
please do provide your detailed infomation in your email: full name, address, zip code, country, etc. No response will be given to anonymous requests. Your information will remain safe and undisclosed with us. *Some countries are not yet supported: China, Taiwan, Malaysia, Corea, Indonesia, Japan, India, Russia. Thank you for your understanding.
Post & Packing:
All prices shown online -or quoted in response- OUTRIGHT and charged in EURO only and do not include post and packing. (P & P)
P & P charges VARY, depending on the WEIGHT and SIZE of the parcel and COUNTRY of delivery. (Zone 1 to 7)
PAYPAL FEES are ADDITIONAL and may be charged upto 5.0 % of the total profoma value for all orders.
Delivery time:
PLEASE BE AWARE that the goods we offer may come from different locations. Most any goods are in stock; others are made to order. This will be confirmed to you.
Your items may sometime arrive at DIFFERENT TIMES in separate packaging.
We aim to get your goods to you as soon as possible, but please allow upto 6 days for the full completion of your order.
Should you have reason to contact us, please quote your Order Reference, company's name & the date of your email of confirmation. Thank you.
|
